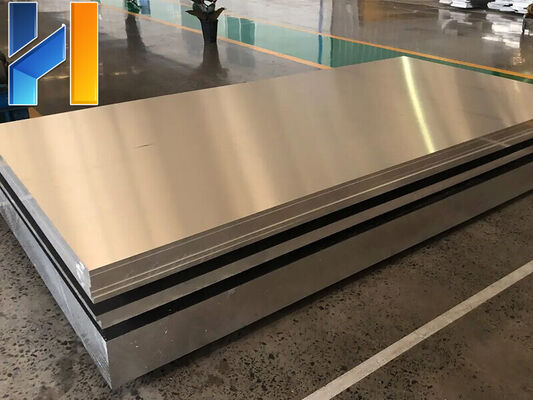

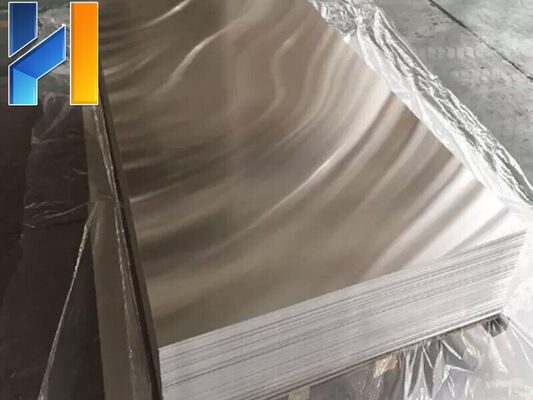

High-Quality 0.2-200mm Thickness Corrosion Resistant T66 Temper Aluminum Plate and Sheet

  • High-Quality 0.2-200mm Thickness Corrosion Resistant T66 Temper Aluminum Plate and Sheet
  • High-Quality 0.2-200mm Thickness Corrosion Resistant T66 Temper Aluminum Plate and Sheet
최소 주문 수량 500kg
제품 상세 정보
두께 범위 0.2-200mm 폭 범위 100-2000mm
길이 옵션 2000mm, 2440mm, 6000mm 합금 조성 EN AW-6082
실리콘 함량 0.20~0.60% 마그네슘 콘탠츠 0.60 -1.20%
망간계 콘탠츠 0.40 – 1.00% 구리 함량 0.15~0.40%
철분 함량 0.10~0.30% 성질 T66
UTS 최소 245MPA UTS 최대 130 MPa
항복 강도 최소 200 MPa 최대 항복 강도 14MPa
신장률 16%
강조하다

0.2-200mm Thickness Aluminum Plate

,

Corrosion Resistant Aluminum Sheet

,

T66 Temper Aluminum Alloy Plate
메시지를 남겨주세요
제품 설명
Al99.5 / 1050 / 3.0255 Aluminum Plate/Sheet
High-Quality 0.2-200mm Thickness Corrosion Resistant T66 Temper Aluminum Plate and Sheet 0 High-Quality 0.2-200mm Thickness Corrosion Resistant T66 Temper Aluminum Plate and Sheet 1
High-Quality Aluminum Plate
Discover our premium aluminum plate, a versatile material engineered for a wide range of industrial and commercial applications. Available in thicknesses from 0.2mm to 500mm and widths of 200mm or more, our aluminum plates offer exceptional durability, corrosion resistance, and formability.
Key Benefits
  • Exceptional Strength-to-Weight Ratio
  • Superior Corrosion Resistance
  • Excellent Thermal and Electrical Conductivity
  • High Recyclability and Sustainability
  • Versatile Machining and Fabrication Properties
Ideal Applications
  • Construction & Architecture
  • Automotive & Transportation
  • Aerospace
  • Electronics & Consumer Goods
  • Packaging
  • Industrial Manufacturing
Product Specifications
Minimum Order Quantity (MOQ)
500 Kg
Packaging & Delivery
Standard export package (wooden box or as required). Prompt delivery for in-stock items; order quantity based for others.
Origin
China
Material
Aluminum Alloy
Surface Finish
Bright, Polished, Hairline, Brush, Sand Blast, Checkered, Embossed, Etching, etc.
Detailed Technical Specifications
General Specifications
Item Standard Material Alloys Size Range
Aluminum Sheet GB/T3190-2008, GB/T3880-2006, ASTM B209, JIS H4000-2006, etc. 1050, 1060, 2A14, 3003, 3103, 4032, 5454, 5754, 5056, 5082, 5086, 6061, 6060, 6082, 7075, 7475 Thickness: 0.2-200mm, Width: 100-2000mm, Length: 2000mm, 2440mm, 6000mm, or as required.
Quality Control Mill Test Certification is supplied with shipment. Third Part Inspection is acceptable. N/A N/A
Trade Conditions Price term: Ex-Work, FOB, CNF, CFR, etc. Payment Term: TT, L/C, Western Union, etc. N/A N/A
Container Size 20ft GP: 5898mm(L)x2352mm(W)x2393mm(H) - 24-26CBM
40ft GP: 12032mm(L)x2352mm(W)x2393mm(H) - 54CBM
40ft HC: 12032mm(L)x2352mm(W)x2698mm(H) - 68CBM		 N/A N/A
Chemical Composition (Typical Values)
Alloy %Si %Mg %Mn %Cu %Fe %Cr %Zn %Ti %Others %Al
EN AW-1050 A0.25Max0.05Max0.05Max0.05Max0.40Max–0.07Max0.05Max–99.5 Min
EN AW-1070 A0.20Max0.03Max0.03Max0.03Max0.25Max–0.07Max0.03Max–99.7 Min
EN AW-1100Si+Fe 0.95 Max–0.05 Max0.05 – 0.20––0.10 Max0.05 Max–99.0 Min
EN AW-20110.40 Max––5.00 – 6.000.70 Max–0.30 Max–Bi : 0.20 – 0.60
Pb : 0.20 – 0.60		Remainder
EN AW-20140.50 – 1.200.20 – 0.800.40 – 1.203.90 – 5.000.70 Max0.10 Max0.25 Max0.15 Max–Remainder
EN AW-20240.50 Max1.20 -1.800.30 – 0.903.80 – 4.900.50 Max0.10 Max0.25 Max0.15 Max0.15 MaxRemainder
EN AW-30030.60 Max–1.00 – 1.500.05 – 0.200.70 Max–0.10 Max–0.15 MaxRemainder
EN AW-31030.50 Max0.30 Max0.90 – 1.500.10 Max0.70 Max0.10 Max0.20 Max0.10 Max–Remainder
EN AW-6101A0.30 – 0.70.40 – 0.900.03 Max0.05 Max0.40 Max––0.10 Max–Remainder
EN AW-60050.60 – 0.900.40 – 0.600.10 Max0.10 Max0.35 Max0.10 Max0.10 Max––Remainder
EN AW-63510.70 – 1.300.40 – 0.800.40 – 0.800.10 Max0.50 Max–0.20 Max0.20 Max0.15 MaxRemainder
EN AW-60600.30 – 0.600.35 – 0.600.10 Max0.10 Max0.10 – 0.300.05 Max0.15 Max0.10 Max–Remainder
EN AW-60610.40 – 0.800.80 – 1.200.15 Max0.15 – 0.400.70 Max0.04 – 0.350.25 Max0.15 Max–Remainder
EN AW-60630.20 – 0.600.45 – 0.900.10 Max0.10 Max0.35 Max0.10 Max0.10 Max0.10 Max–Remainder
EN AW-60820.70 – 1.300.60 -1.200.40 – 1.000.10 Max0.50 Max0.25 Max0.20 Max0.10 Max–Remainder
Mechanical Properties (Typical Values)
Alloy Temper UTS (Mpa) Minimum UTS (Mpa) Maximum Yield Strength (Mpa) Minimum Yield Strength (Mpa) Maximum Elongation (%) A 50mm (Minimum)
EN AW-1050 AF60–20–23
EN AW-1050 AO609520–23
EN AW-1070 AF60–20–23
EN AW-1100O75110––25
EN AW-2011T4275–125–12
EN AW-2011T6310–230–6
EN AW-2014O–250–13510
EN AW-2014T4370–230–11
EN AW-2014T6415–370–5
EN AW-2024O–250–15010
EN AW-2024T3,T3510,T3511395–290–6
EN AW-2024T8,T8510,T8511455–380–4
EN AW-3003F95–35–20
EN AW-3003O9513535–20
EN AW-3103F95–35–20
EN AW-3103O9513535–20
EN AW-6101AT6200–170–8
EN AW-6005T4180–90–13
EN AW-6005T6270–225–6
EN AW-6351O–160–11012
EN AW-6351T4205–110–12
EN AW-6351T6290–250–6
EN AW-6060T4120–601412
EN AW-6060T5160–120–6
EN AW-6060T6190–150–6
EN AW-6060T64180–120–10
EN AW-6060T66215–160–6
EN AW-6061O–150–11014
EN AW-6061T4180–110–13
EN AW-6061T6260–240–6
EN AW-6063O–130––16
EN AW-6063T4130–65–12
EN AW-6063T5175–130–6
EN AW-6063T6215–170–6
EN AW-6063T66245–200–6
EN AW-6082O–160–11012
EN AW-6082T4205–110–12
EN AW-6082T5270–230–6
EN AW-6082T6290–250–6
