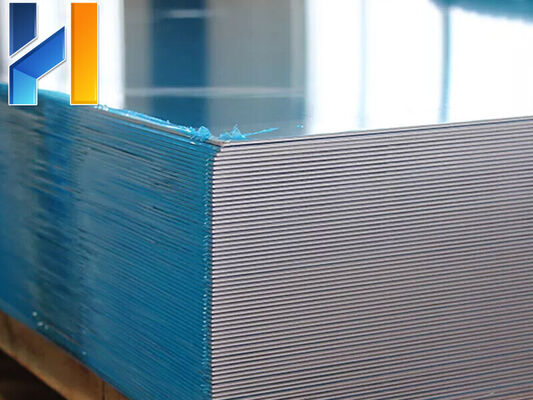

Premium 0.2-200mm Thickness Corrosion Resistant T66 Temper Aluminum Plate and Sheet
| 최소 주문 수량 | 500kg |
|---|
제품 상세 정보
| 두께 범위 | 0.2-200mm | 폭 범위 | 100-2000mm |
|---|---|---|---|
| 길이 옵션 | 2000mm, 2440mm, 6000mm | 합금 종류 | EN AW-6082 |
| 실리콘 함량 | 0.20~0.60% | 마그네슘 콘탠츠 | 0.60 -1.20% |
| 망간계 콘탠츠 | 0.40 – 1.00% | 구리 함량 | 0.15~0.40% |
| 철분 함량 | 0.10~0.30% | 크로미움 콘탠츠 | 0.25% 최대 |
| 아연 함량 | 0.15% 최대 | 티타늄 콘탠츠 | 0.20% 최대 |
| 성질 | T66 | UTS 최소 | 245MPA |
| 항복 강도 | 200 MPa | ||
| 강조하다 | 0.2-200mm Thickness Aluminum Plate,Corrosion Resistant Aluminum Sheet,T66 Temper Aluminium Plate |
||
제품 설명
AlZn4Mg3Cu / 7079 / 3.4365 Aluminum Plate/Sheet
Premium Aluminum Plate Overview
Our high-quality aluminum plates offer exceptional versatility and performance, available in thicknesses from 0.2mm to 500mm and widths exceeding 200mm. Engineered for durability and precision, these plates are ideal for a wide range of industrial and commercial applications.
Key Features
- Superior strength-to-weight ratio
- Excellent corrosion resistance
- High thermal and electrical conductivity
- Easy to fabricate and form
- Available in various finishes
Key Applications: Construction, Automotive, Aerospace, Electronics, Packaging, and more.
Product Specifications
Brand
[Brand Name]
Origin
[Country of Origin]
Material
Aluminum Alloy
Color
Silver
Packaging
Standard export package, wooden box or as required
MOQ
500 Kg
Technical Specifications
General Specifications
| Item | Standard | Material Alloys | Size Range |
|---|---|---|---|
| Aluminum Sheet | GB/T3190-2008, GB/T3880-2006, ASTM B209, JIS H4000-2006, etc. | 1050, 1060, 2A14, 3003, 3103, 4032, 5454, 5754, 5056, 5082, 5086, 6061, 6060, 6082, 7075, 7475 | Thickness: 0.2-200mm, Width: 100-2000mm, Length: 2000mm, 2440mm, 6000mm, or as required |
| Surface Finish | Mill Test Certification supplied with shipment, Third Part Inspection is acceptable | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. | N/A |
| Trade Terms | Ex-Work, FOB, CNF, CFR, etc. | TT, L/C, Western Union, etc. | Prompt delivery for in-stock items; based on order quantity for others |
Container Loading Capacity
| Container Type | Dimensions (L x W x H) | Capacity (CBM) |
|---|---|---|
| 20ft GP | 5898mm x 2352mm x 2393mm | 24-26 CBM |
| 40ft GP | 12032mm x 2352mm x 2393mm | 54 CBM |
| 40ft HC | 12032mm x 2352mm x 2698mm | 68 CBM |
Material Composition (Example: EN AW-1050 A)
| Alloy | %Si | %Mg | %Fe | %Al |
|---|---|---|---|---|
| EN AW-1050 A | 0.25 Max | 0.05 Max | 0.40 Max | 99.5 Min |
| EN AW-1070 A | 0.20 Max | 0.03 Max | 0.25 Max | 99.7 Min |
| EN AW-1100 | 0.95 Max (Si+Fe) | - | - | 99.0 Min |
| EN AW-3003 | 0.60 Max | - | 0.70 Max | Remainder |
| EN AW-6061 | 0.40 – 0.80 | 0.80 – 1.20 | 0.70 Max | Remainder |
| EN AW-7075 | - | - | - | Remainder |
Mechanical Properties (Example: EN AW-1050 A, Temper O)
| Alloy | Temper | UTS (Mpa) Min | Yield Strength (Mpa) Min | Elongation (%) A 50mm (Min) |
|---|---|---|---|---|
| EN AW-1050 A | O | 60 | 20 | 23 |
| EN AW-1050 A | F | 60 | 20 | 23 |
| EN AW-1100 | O | 75 | - | 25 |
| EN AW-6061 | O | - | - | 14 |
| EN AW-6061 | T6 | 260 | 240 | 6 |
| EN AW-7075 | T6 | 520 | 480 | 5 |
