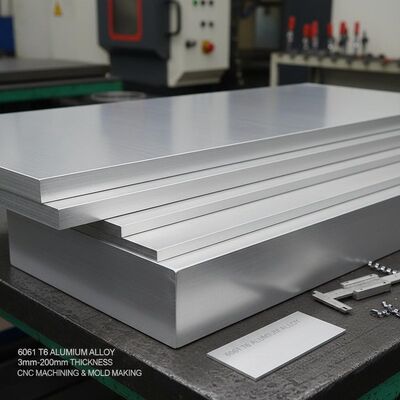

6061 T6 Precision Pre-Stretched Aluminum Alloy Plate with 3mm-200mm Thickness for CNC Machining and Mold Making
| 원래 장소 | 중국 산둥 |
|---|---|
| 브랜드 이름 | Hongtu |
| 인증 | ISO 9001:2015, SGS, RoHS |
| 모델 번호 | 6061-T6/T651 |
| 최소 주문 수량 | 500KG |
| 가격 | USD 2.8-4.2 / kg |
| 포장 세부 사항 | 녹슬지 않는 종이가 끼워져 있고, 건조제가 포함된 PE 필름, 강철 끈이 달린 수출용 목재 팔레트 |
| 배달 시간 | 재고 보유 기간은 영업일 기준 3~7일, 생산 기간은 12~20일 |
| 지불 조건 | T/T, L/C, 페이팔, 웨스턴 유니온 |
| 공급 능력 | 한 달에 2500 톤 |
제품 상세 정보
| 합금 | 6061 | 성질 | T6, T651, T6511 |
|---|---|---|---|
| 두께 | 3 밀리미터 - 200 밀리미터 | 너비 | 1000mm, 1250mm, 1500mm, 2000mm |
| 길이 | 2000mm, 2440mm, 3000mm, 6000mm 또는 맞춤형 | 기준 | ASTM B209, AMS 4027, EN 485, GB/T 3880 |
| 표면 마감 | 밀 마감, 양극 산화 처리, 경질 양극 산화 처리, 코팅 처리 | 인장강도 | ≥ 290MPa |
| 항복 강도 | ≥ 240MPa | 연장 | ≥ 8-10% |
| 평탄도 공차 | ≤ 0.2mm/m | 애플리케이션 | CNC 가공, 금형 공구, 정밀 설비, 자동화 장비 |
| 강조하다 | 6061 T6 Precision Aluminum Plate,CNC Machining Aluminum Mold Sheet,Pre-Stretched 6061 T651 Alloy Plate |
||
제품 설명
6061 T6 Precision Pre-Stretched Aluminum Alloy Plate 3mm-200mm Thickness for CNC Machining Mold Making
6061 T6 Precision Aluminum Alloy Plate for CNC Machining and Mold Making
The 6061 T6 aluminum alloy plate is the most versatile heat-treatable aluminum grade, combining excellent mechanical properties with superior machinability. The T651 pre-stretched temper eliminates residual stress, ensuring exceptional dimensional stability during CNC machining. This makes it the industry standard for precision tooling, mold making, and automated equipment components.
Key Features
- Pre-Stretched Stress Relief (T651): Controlled stretching (1-3%) eliminates internal stress, preventing warping during machining
- Excellent Machinability: Produces small, broken chips with good surface finish; rated excellent for all machining operations
- Superior Dimensional Stability: Minimal distortion after material removal, ideal for high-precision components with tight tolerances
- Good Corrosion Resistance: Performs well in atmospheric environments; can be anodized for enhanced protection
- Weldability: Compatible with TIG and MIG welding; post-weld heat treatment restores full T6 properties
Chemical Composition (Weight %)
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|
| Min | 0.40 | - | 0.15 | - | 0.80 | 0.04 | - | - | Remainder |
| Max | 0.80 | 0.70 | 0.40 | 0.15 | 1.20 | 0.35 | 0.25 | 0.15 |
Mechanical Properties (T6/T651 Temper)
| Property | Value |
|---|---|
| Tensile Strength | ≥ 290 MPa |
| Yield Strength | ≥ 240 MPa |
| Elongation | ≥ 8% (≤6.0mm), ≥ 10% (>6.0mm) |
| Hardness (Brinell) | 95 HB |
| Density | 2.70 g/cm³ |
| Elastic Modulus | 68.9 GPa |
Available Dimensions
| Parameter | Range |
|---|---|
| Thickness | 3mm - 200mm |
| Width | 1000mm - 2000mm |
| Length | 2000mm - 6000mm or Custom |
| Temper | T6, T651, T6511 |
| Flatness | ≤ 0.2mm per meter |
Applications
- CNC machined precision components and fixtures
- Injection mold base plates and mold tooling
- Automation equipment frames and structural parts
- Semiconductor equipment components
- Motorcycle and automotive parts
- Robotics and industrial machine components
Our Advantages
- Precision Saw Cutting: ±0.5mm cutting tolerance on all custom dimensions
- Flatness Guaranteed: T651 pre-stretched process with ≤ 0.2mm/m flatness guarantee
- Surface Protection: Laser-applied PE protective film on one or both sides available
- Full Testing: Each shipment includes MTC (EN 10204 3.1) with spectrographic, tensile and hardness reports
- Custom Sizes: Precision cutting to your exact specifications with minimal waste
Request a quotation today for 6061 T6/T651 precision aluminum plates. Free sample cutting and material certification provided.
