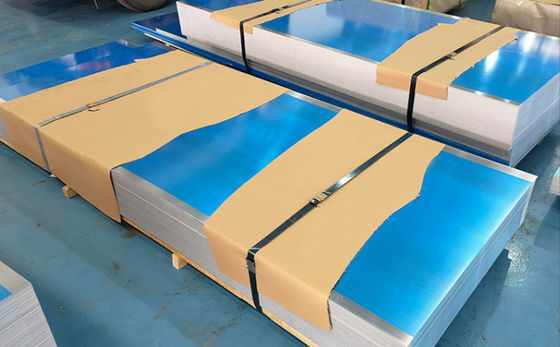

7075 T6 Aerospace Grade Aluminum Sheet 3.0mm Zinc Magnesium Copper Alloy High Strength for Aircraft Wing Components
| 원래 장소 | 중국 산둥 |
|---|---|
| 브랜드 이름 | CHALCO |
| 인증 | ISO 9001:2015, ASTM B209, AMS 4045, SAE AMS-QQ-A-250/12 |
| 모델 번호 | AL7075-T6-3.0 |
| 최소 주문 수량 | 1톤 |
| 가격 | USD 3850-4450 / Ton |
| 포장 세부 사항 | 부식 방지 오일 코팅, 양면 PE 보호 필름, 강철 끈으로 강화된 목재 팔레트, 건조제 봉투가 포함된 항해에 적합한 컨테이너 포장 |
| 배달 시간 | 주문 확인 후 영업일 기준 15~25일 |
| 지불 조건 | 보자마자 T/T, L/C |
| 공급 능력 | 달 당 3000 톤 |
제품 상세 정보
| 합금 | 7075 | 성질 | T6(용체열처리 인공시효) |
|---|---|---|---|
| 두께 | 3.0mm | 너비 | 1219mm / 1500mm |
| 길이 | 2438mm / 3000mm / 4000mm | 아연 함량 | 5.1-6.1% |
| 마그네슘 콘탠츠 | 2.1-2.9% | 인장강도 | ≥540MPa |
| 항복 강도 | ≥470MPa | 경도 | ≥150HB |
| 강조하다 | Aerospace Grade Zinc Alloy,Ultra High Strength 7075 Sheet,3.0mm Aircraft Structural Wing Plate |
||
제품 설명
7075 T6 Aerospace Grade Aluminum Sheet 3.0mm Zinc Magnesium Copper Alloy High Strength for Aircraft Wing Components
Ultra-High Strength at One-Third the Weight of Steel
Our 7075 T6 Aerospace Grade Aluminum Sheet is the highest strength aluminum alloy commercially available, with tensile strength exceeding 540 MPa — approaching that of structural steel at only one-third the weight. Engineered with a zinc-magnesium-copper alloy system and fully heat treated to T6 temper, this 3.0mm sheet is the definitive choice for aircraft structural components, wing spars, fuselage frames, and high-stress aerospace applications where failure is not an option.
Key Features
- Ultra-High Strength: ≥540 MPa tensile strength and ≥470 MPa yield strength, comparable to mild structural steel (S235) but at only 34% of the weight
- Zinc-Magnesium-Copper Alloy: 5.1-6.1% Zn, 2.1-2.9% Mg, and 1.2-2.0% Cu provides precipitation hardening capability for maximum mechanical properties
- Full T6 Heat Treatment: Solution treated at 480°C, water quenched, and artificially aged at 120°C for 24 hours for peak strength and hardness
- Excellent Fatigue Properties: Superior fatigue crack growth resistance critical for cyclic loading in aerospace structures
- Outstanding Strength Retention: Maintains significant strength at moderately elevated temperatures up to 120°C continuous service
Applications
- Aircraft wing spars and ribs
- Fuselage frames
- Missile components
- High-performance bicycle frames
- Rock climbing equipment
- Competition firearms receivers
- Molds for plastic injection
- Precision structural components where weight reduction is critical
Quality Assurance
Comprehensive Testing & Certification
Every sheet undergoes electrical conductivity testing (32-36% IACS for T6 verification), ultrasonic C-scan inspection for internal integrity per AMS-STD-2154 Class A, chemical analysis by OES, tensile testing per ASTM E8, and hardness testing. AMS 4045 aerospace specification compliance with full melt-to-product traceability. NADCAP-accredited testing laboratory certification available.
